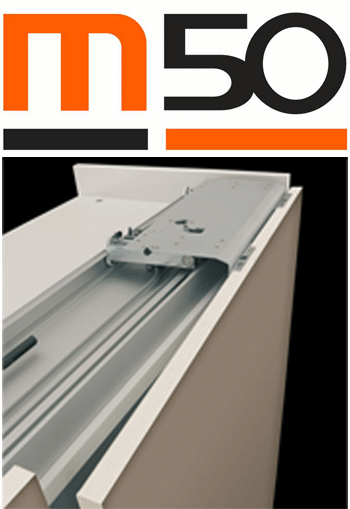

COPLANAR SLIDING SYSTEM
for two-door units with a weight up to 50 kg,
decelerated opening and closing.

• Coplanar two-door mechanism.
• Decelerated opening and closing.
• Maximum door load: 50kg.
• Door width: minimum 800mm,
  maximum 2,000mm.
• Maximum door height: 3,000mm.
• Distance of the door from the
  bottom edge of the base panel: 33/17mm

RECESSED ADJUSTERS:
• Door thickness: min. 18mm;
  door+handle thickness: 45mm.

   SURFACE-MOUNTED ADJUSTERS:
    • Door thickness: min. 18mm; door+handle thickness: 40mm.
    • Vertical door adjustment: ± 5mm.
    • Horizontal door adjustment: ± 3.5mm.
    • Weight-bearing upper track fitted to the top panel of the unit with side clips and screws.
    • Lower track fitted under the base panel of the unit with side clips and screws.
    • Can be adapted for cupboards up to 200mm wider.
    • Compatible with Clipper frames.
    • Front levelling feet
