COPLANAR SLIDING SYSTEM
for two-door wall units
up to a weight of 20kg,
decelerated opening and closing.

• Coplanar two-door mechanism.
• Decelerated opening and closing.
• Maximum door load: 20kg.
• Door width: minimum 600mm,
  maximum 1,500mm.
• Maximum door height: 1,200mm.
• Door thickness: minimum 18mm.
• Maximum thickness of the door
  with handle: 45mm.
• Vertical door adjustment: ± 4.5mm.
• Horizontal door adjustment: ± 3mm.
• Upper load-bearing track fitted to the
   top panel of the wall unit.
• Lower track recessed into the base
  panel of the wall unit.

 Small coplanar sliding door systems
 WALL UNIT
ORDER NUMBER

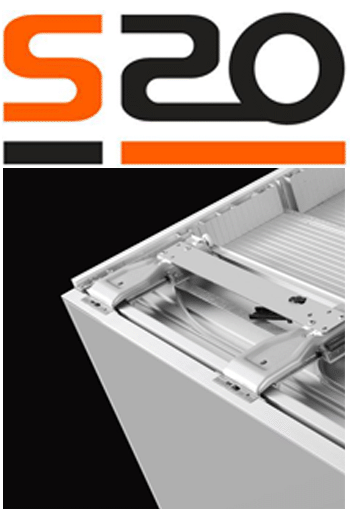

Slider S20
20 kg coplanar sliding door systems

1800mm
2000mm
2400mm
3000mm

S-S201800.WA
S-S202000.WA
S-S202400.WA
S-S203000.WA
