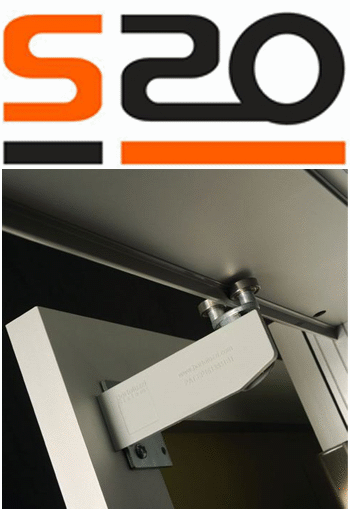

COPLANAR SLIDING SYSTEM
for two-door kitchen cupboards
up to a weight of 20kg,
decelerated opening and closing.

• Coplanar two-door mechanism.
• Decelerated opening and closing.
• Maximum door load: 20kg.
• Door width: minimum 600mm,
  maximum 1,500mm.
• Maximum door height: 1,200mm.
• Door thickness: minimum 18mm.
• Maximum thickness of the door
  with handle: 45mm.
• Vertical door adjustment: ± 4.5mm.
• Horizontal door adjustment: ± 3mm.
• Load-bearing lower track fitted under
  the base panel of the unit.
• Upper track fitted under the top
  panel of the unit.
