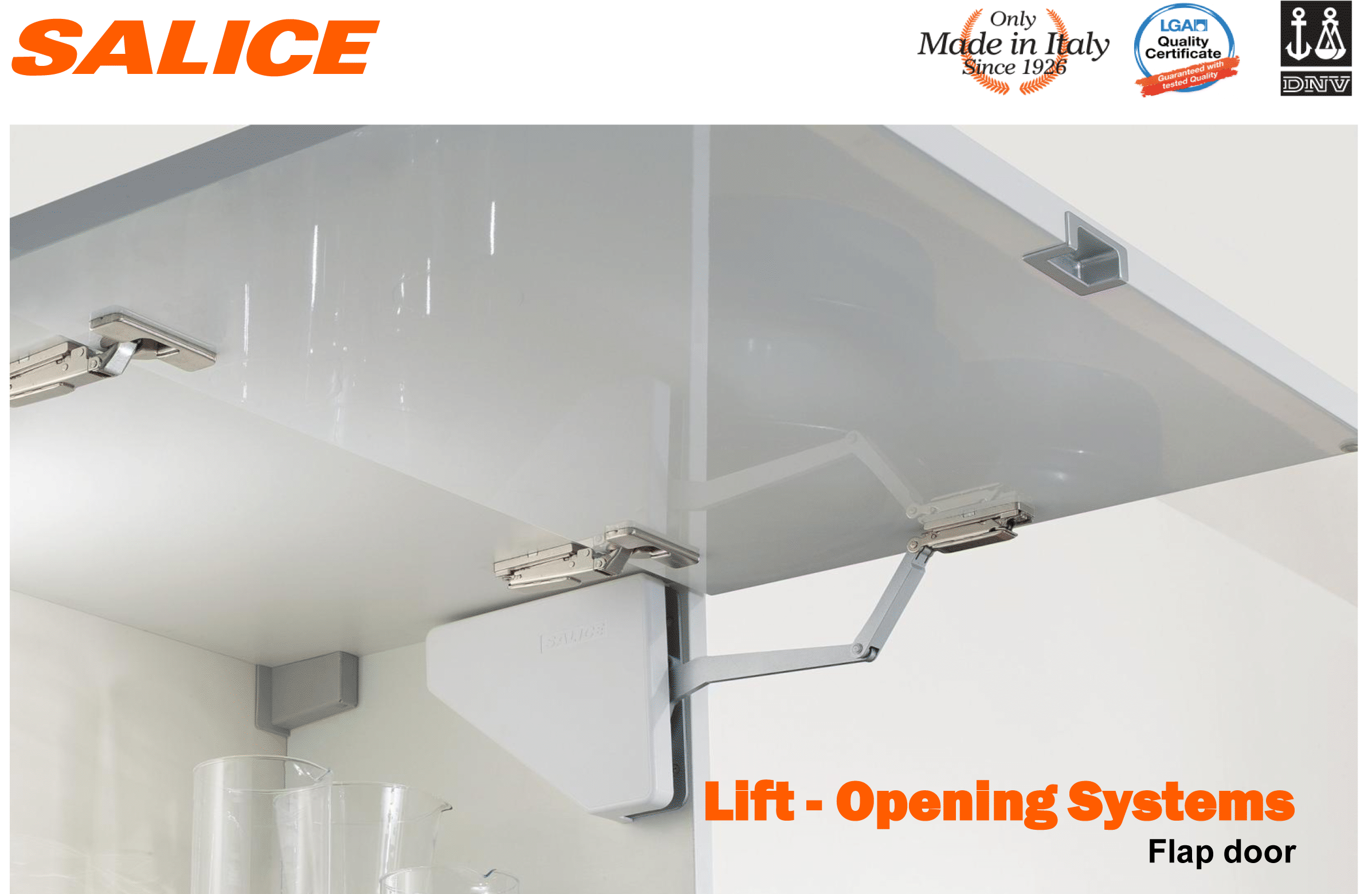

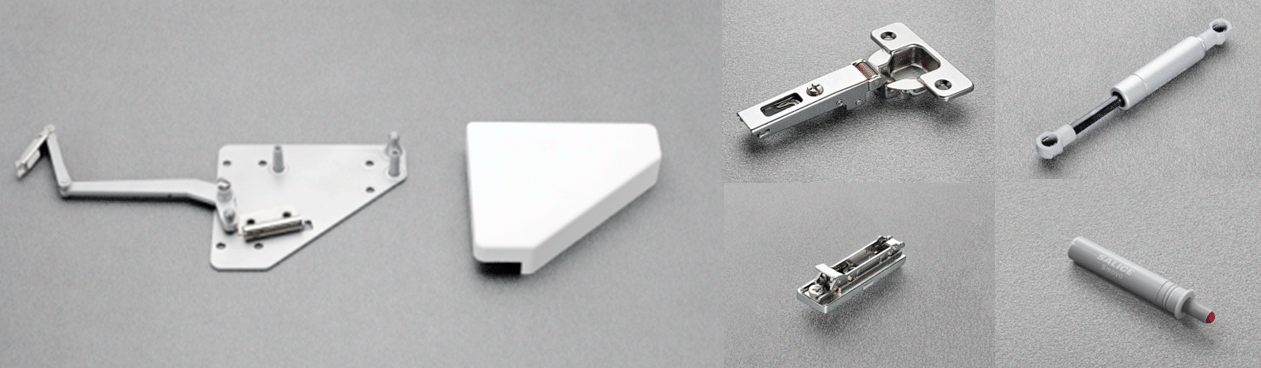

LIFT OPENING SYSTEMS:
 Flap door with Smove soft-closing
 Select the proper piston strength in the chart  below  and replace the XXX in the
 catalogue number with the piston strength
SOFT-CLOSING

PUSH-TO-OPEN







300mm to 400mm door height - Single arm
600mm door width
900mm door width
1200mm door width

L-SOFLPS060X.XXX
L-SOFLPS090X.XXX
L-SOFLPS120X.XXX

L-PUFLPS060X.XXX
L-PUFLPS090X.XXX
L-PUFLPS120X.XXX
    Only 1 arm is needed up to 1200mm door width.
Replace "X" in the catalogue number with "L" for left arm and "R" for right arm.


500mm to 600mm door height
600mm door width
900mm door width
1200mm door width

L-SOFLPL060X.XXX
L-SOFLPL090P.XXX
L-SOFLPL120P.XXX

L-PUFLPL060X.XXX
L-PUFLPL090P.XXX
L-PUFLPL120P.XXX
    Only 1 arm is needed up to 600mm door width.
Replace "X" in the catalogue number with "L" for left arm and "R" for right arm.


Piston chart in newtons. Replace the XXX above with the correct piston strength
BOARDS
600mm

900mm

1200mm


MDF BOARDS
Height\Width
360mm to 400mm
440mm to 600mm

150N
350N

250N
350N

350N
450N

MFC BOARDS
Height\Width
360mm to 400mm
440mm to 600mm

150 N
350N

250N
350N

350N
450N

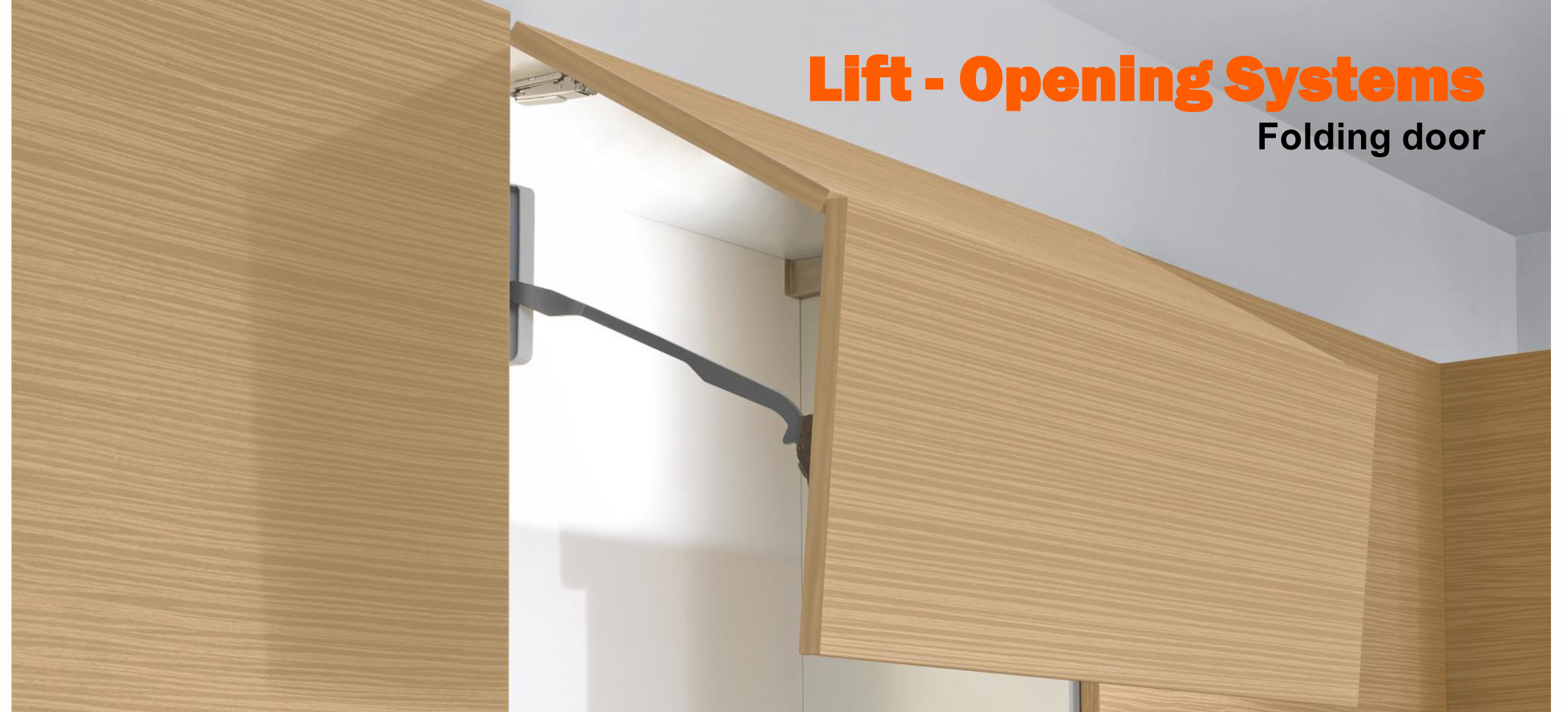

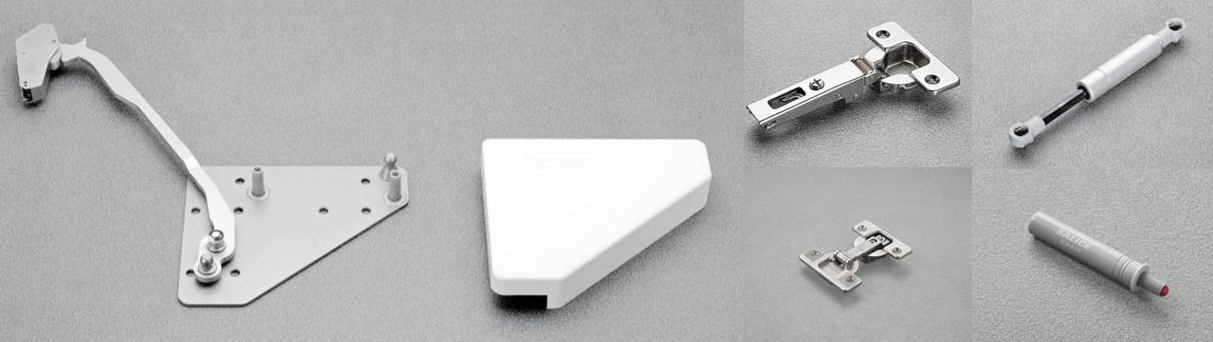

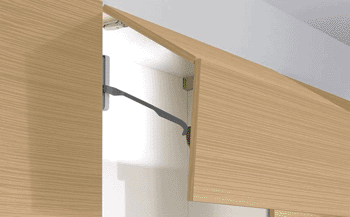

 LIFT OPENING SYSTEMS:
 Folding door with Smove soft-closing
 Select the proper piston strength in the chart  below  and replace the  XXX in the catalogue number with the piston strength
SOFT-CLOSING




700mm to 750mm door height - Single arm
600mm door width

L-SOFOL060X.XXX
    Only 1 arm is needed for 600mm door width.
Replace "X" in the catalogue number with "L" for left arm and "R" for right arm.


700mm to 750mm door height - Pair arms
900mm door width
1200mm door width

L-SOFOL090P.XXX
L-SOFOL120P.XXX


Piston chart in newtons. Replace the XXX above with the correct piston strength
BOARDS
600mm

900mm

1200mm


 MDF BOARDS
 Height\Width
 700mm to 750mm


450N


400N


500N

 MFC BOARDS
 Height\Width
 700mm to 750mm


400N


300N


400N

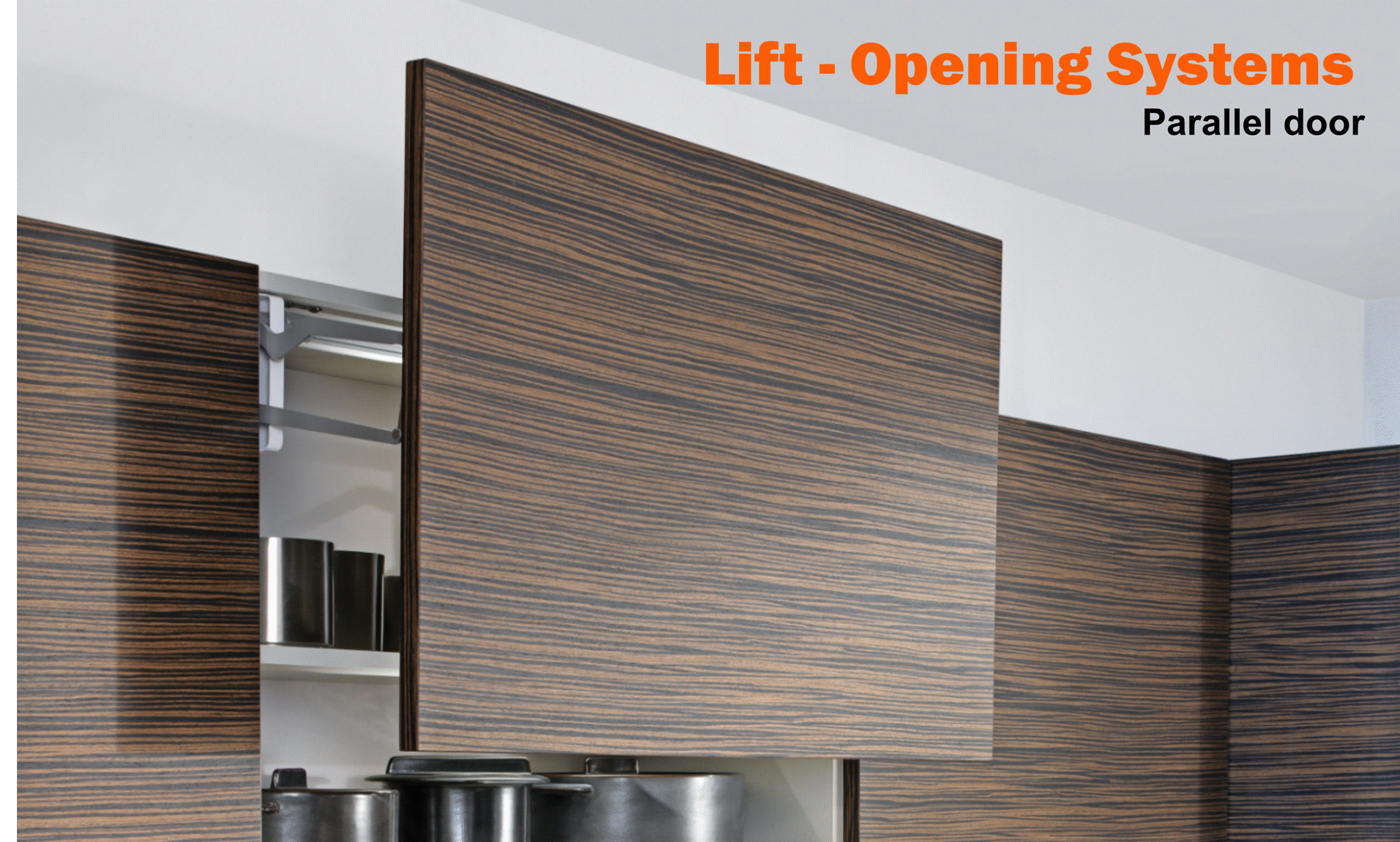

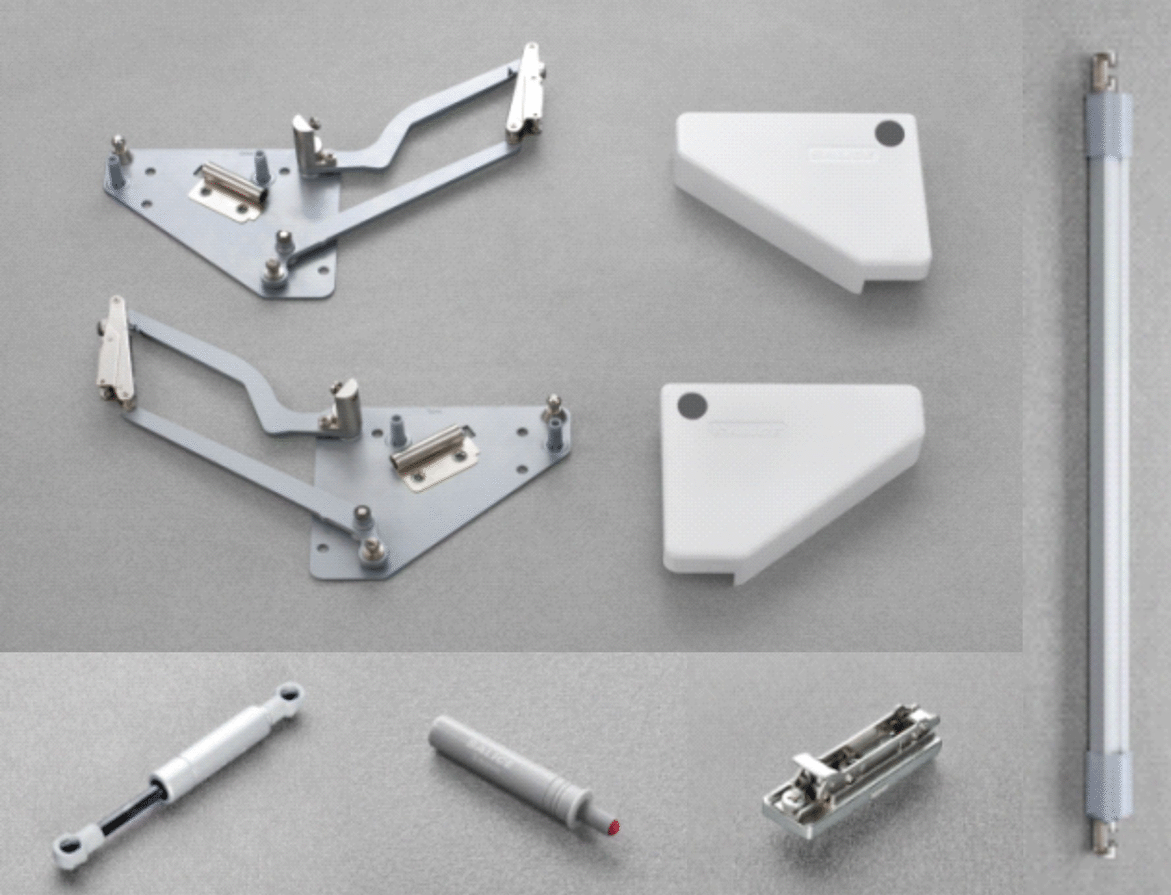

 LIFT OPENING SYSTEMS:
 Parallel door with Smove soft-closing.
 Select the proper piston strength in the chart below and
 replace the XXX in the catalogue number with the piston strength
SOFT-CLOSING




For 360mm to 440mm door height - Small arm
600mm door width
900mm door width
1200mm door width

L-SOPARS060.XXX
L-SOPARS090.XXX
L-SOPARS120.XXX


For 440mm to 660mm door height - Large arm
600mm door width
900mm door width
1200mm door width

L-SOPARL060.XXX
L-SOPARL090.XXX
L-SOPARL120.XXX


Piston chart in newtons. Replace the XXX above with the correct piston strength
BOARDS
600mm

900mm

1200mm

 MDF BOARDS
 Height\Width
360mm to 440mm
440mm to 660mm


100N
250N

100N
350N


150N
450N

 MFC BOARDS
 Height\Width
360mm to 440mm
440mm to 660mm


100N
250N

100N
350N


100N
450N

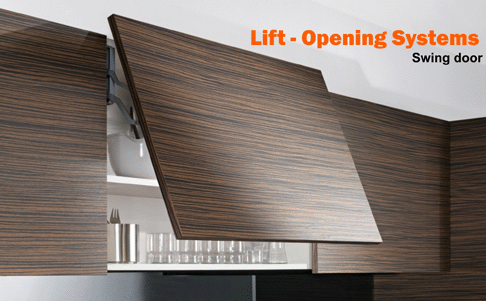

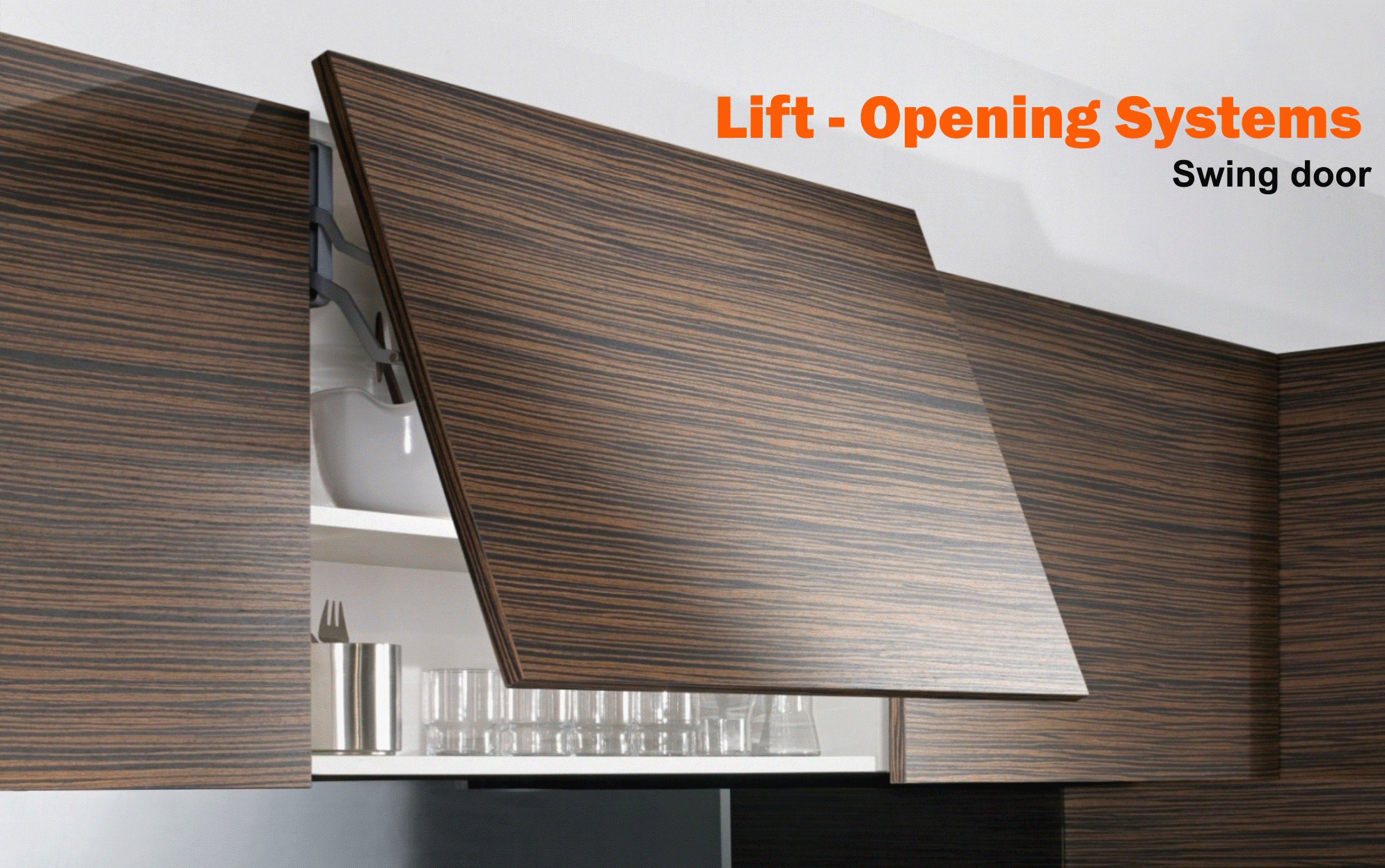

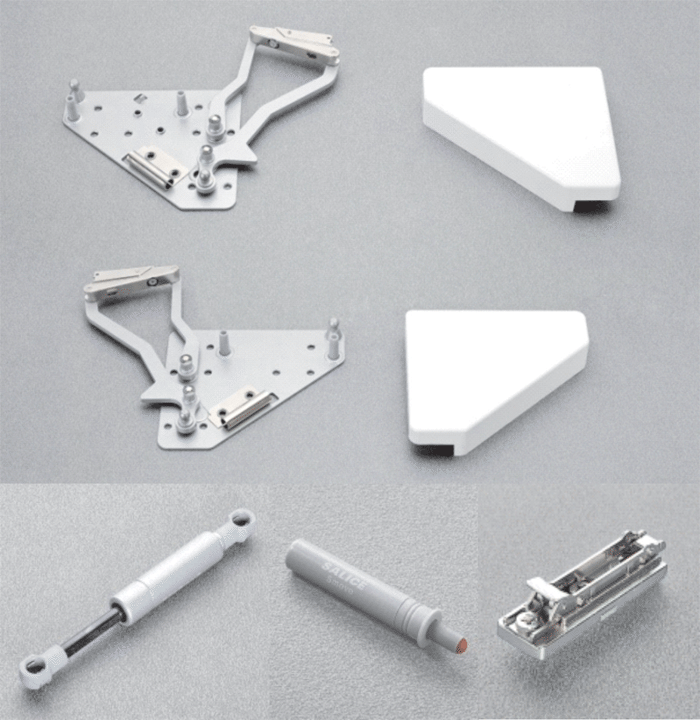

 LIFT OPENING SYSTEMS:
 Swing door with Smove soft-closing
 Select the proper piston strength in the chart below and
 replace the XXX in the catalogue number
SOFT-CLOSING





For 360mm to 480mm door height
600mm to 1200mm door width

L-SOSWINGS.XXX


For 600mm to 720mm door height
600mm to 1200mm door width

L-SOSWINGL.XXX


Piston chart in newtons. Replace the XXX above with the correct piston strength
BOARDS
600mm

900mm

1200mm

 MDF BOARDS
Height\Width
360mm to 480mm
600mm to 720mm


100N
150N

100N
250N


100N
350N

 MFC BOARDS
Height\Width
360mm to 480mm
600mm to 720mm


100N
150N

100N
150N


100N
250N
