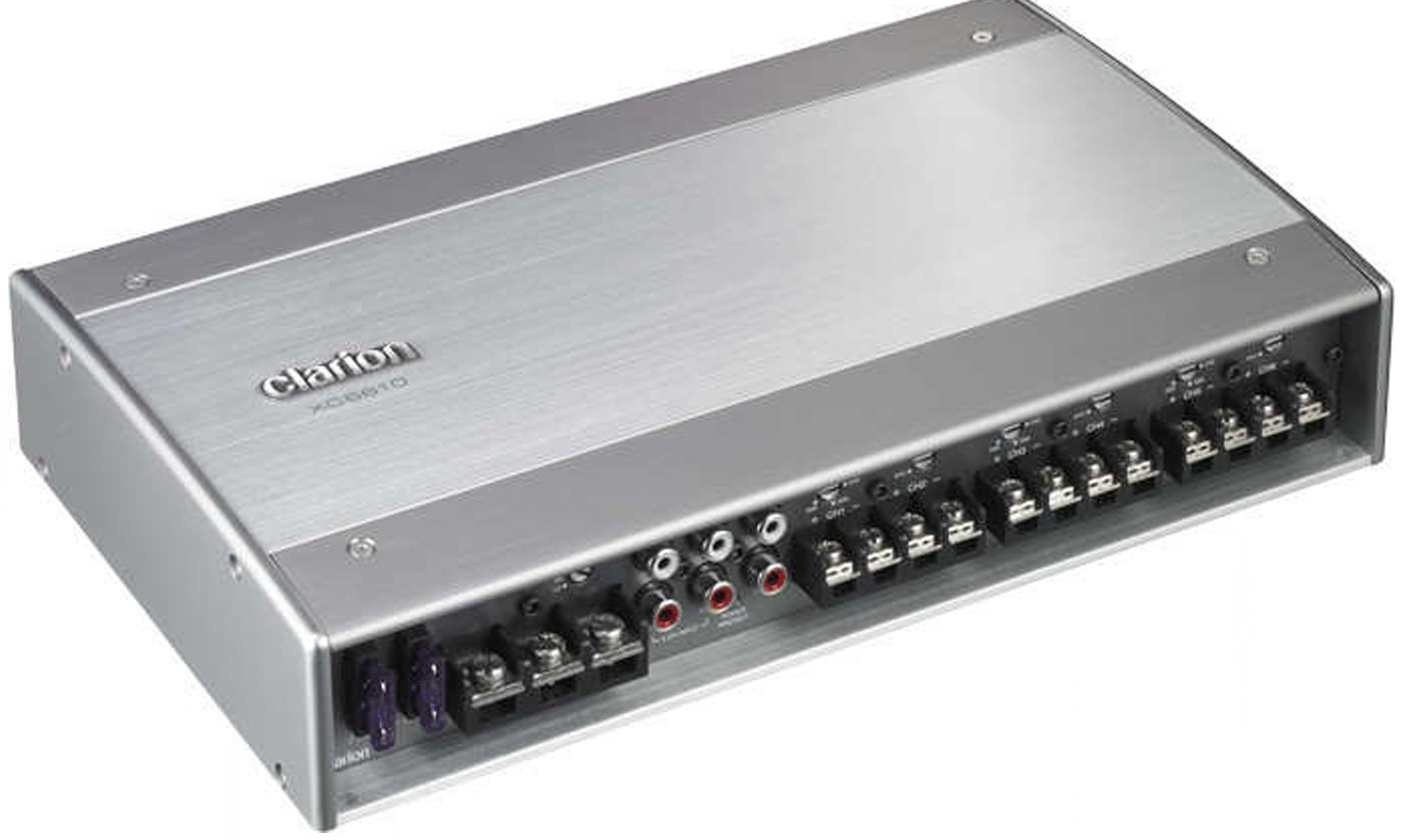

XC6610
6/5/4/3 Channel Class D Amplifier

Key Features
• 1,000 Watts of Maximum Power Output
• 250 Watts x 3 Channel @ 4-Ohms Bridged
• 125 Watts x 6 Channel @ 2-Ohms
• 85 Watts x 6 Channel @ 4-Ohms
• Conformally Coated PC Board
• Stainless Hardware
• MOS-FET Power Supply
• High/Low Pass Electronic Crossover, 50Hz-500Hz
• Variable 12dB/Oct. Bass Boost for CH5/CH6
• Variable Gain Control
• 2 × 40 Amp ATC Fuses
• Switchable High Level Auto Sense
• Soft Turn-On and Turn-Off Circuitry
• Ground Loop Isolation Circuit
• Corrosion Resistant RCA, Power, and Speaker Connections
• Dimensions (W ×L× H) :237.0 x 175.0 x 56.0 mm
