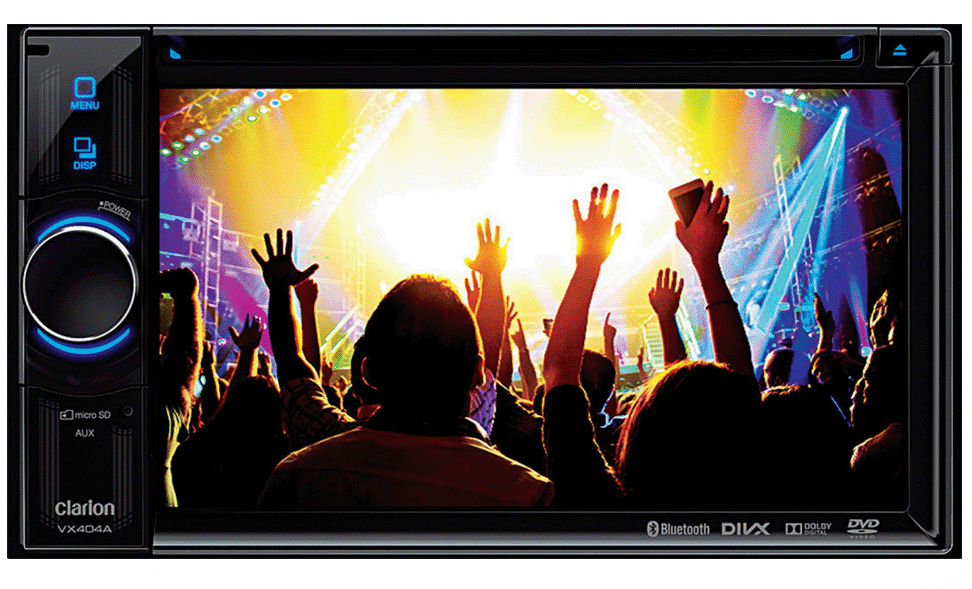

VX404A
   2-DIN DVD MULTIMEDIA STATION

   SPECIFICATIONS

• 6.2" resistive touch TFT LCD display
• 800 x 480 pixel resolution

         SUPPORTED MEDIA

• CD / DVD / iPod / USB / Bluetooth / AUX / microSD
• Built-in Bluetooth for hands-free calling with echo cancellation & noise reduction
• Smartphone connectivity (selected Android and iPhone models) via HDMI mode

         AUDIO FEATURES

• Beat EQ with Bass Boost, Impact, Excite, and Custom mode
• Magna Bass EX
• Built-in Low pass / high pass filters
• Subwoofer Control
• Support Dolby Digital Surround Sound
• 2-zone entertainment: front and rear separate source control
• 2V / 6-channel audio pre-out

         TUNER SECTION

• Frequency Bands : FM3/AM1
• FM: (MHz) 0.05 MHz steps : 87.5 - 108.0
• AM: (kHz) 9 kHz steps : 531 - 1629

         DVD SECTION

• Useable Discs : DVD-Video/ DVD ±R/ DVD ±RW
• Encoded Disc : DivX, MP4 (MPEG4/AAC), MP3, WMA, AAC
• Frequency Response (Hz) : 20 - 20,000
• Distortion (%) : 0.05

         USB SECTION

• USB Ports : 2 (Rear)
• Supported File Format : MP3 / WMA / FLAC / AAC / WAV / MP4 (MPEG4/AAC)/ AVC(H.264/AAC)

         CD SECTION

• S/N Ratio (dB) 1 kHz : 93dB
• Frequency Response (Hz) : 20 - 20,000
• Dynamic Range (dB) 1 kHz : 93dB
• Harmonic Distortion (%) : 0.1%
• Supported File Format : CDDA / DivX / MP3 / WMA / AAC

         SD CARD SECTION

• Slot : MicroSD (Navigation)
• Supported File: MP3/ WMA/ FLAC/ AAC/ WAV/ MP4(MPEG4/AAC)/ AVC(H.264/AAC)

         iPod SECTION

• Direct iPod Control : Yes via USB
• iPhone Compatible : YES
• Simple Control ( Operation from iPod) : YES
• Video File Browsing and Control : YES
• Album Art : YES

         AUDIO SECTION

• Power Output : 45W x 4 channel maximum power output

         BLUETOOTH

• Profile : HSP, HFP, AVRCP, A2DP, PBAP, SPP, OPP

        GENERAL

• Dimensions (W x H x D) (mm) : 178 x 100 x 172
• Weight (Kg) : 2.18
• Power Consumption : 4A @ 1W
• Power Requirement : 10.8V - 15.6V
• Speaker Impedance : 4Ω to 8Ω
• HDMI : HDMI Input
