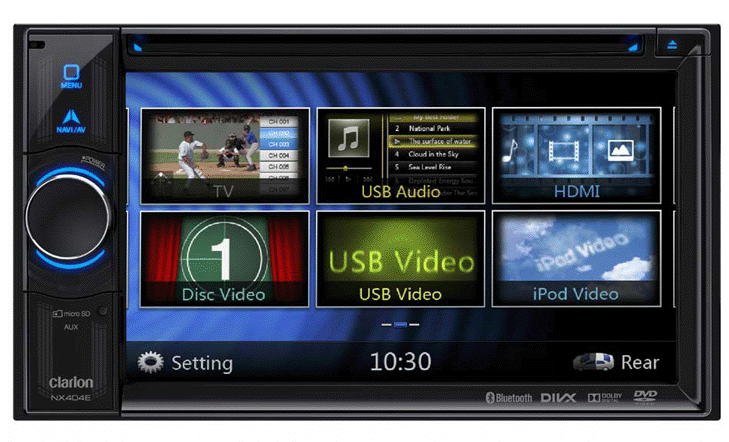

NX404A





        NX404A
       2-DIN DVD Multimedia Station with Built-in Navigation
       and 6.2-inch High Resolution Touch Panel Control

        Specifications

       MONITOR
      • Screen Size (Inches) : 6.2-inch
      • Aspect Ratio : 16:9
      • Display Type : 6,2" WVGA Touch Panel (TN type (Normally White)
      • Drive Principle : TFT active matrix
      • Number of Pixels : 1.152.000 pixels (800 RGB (H) × 480 (V) × 3)
      • HDMI Input
      • RCA Video Input : 1Vp-p@75Ω (NTSC/PAL)
      • RCA Audio Input : ≤2V rms

       TUNER
      • Frequency Bands : FM/AM
      • FM: (MHz) 0.05 MHz steps : 87,5 - 108,0
      • AM: (kHz) 9 kHz steps : 531 - 1.602

       DVD SECTION
      • Useable Discs : DVD-Video/DVD ±R/DVD ±RW
      • Frequency Response (Hz) : 20 - 20.000
      • Distortion (%) : 0.05

       CD SECTION
      • S/N Ratio (dB) 1 kHz : 93dB
      • Frequency Response (Hz) : 20 - 20.000
      • Dynamic Range (dB) 1 kHz : 93
      • Distortion (%) : 0.05

      AUDIO
      • Power Output (DIN45324, +B = 14,4 V) : 25W

       GENERAL
      • Dimensions (W × H × D) (mm) : 178 × 100 × 172
      • Weight (Lbs) : 5.0
      • Power Consumption : 4A @ 1W
      • Power Requirement : 10,8V - 15,6V
      • Speaker Impedance : 4Ω-8Ω
