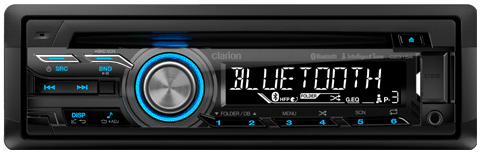

CZ315A





       CZ315A
       1 DIN / BLUETOOTH / CD / USB / MP3 / WMA RECEIVER

        Specifications

       MONITOR
      • 13 segments x 10 digits
      • Single line display with white illumination

       SUPPORTED MEDIA
      • CD / iPod / USB / Bluetooth / AUXM
      • Built-in Bluetooth for hands-free calling with echo cancellation & noise reduction

       AUDIO FEATURES
      • Intelligent Tune (Sound Restorer, Virtual Bass, Dynamic Beat Enhancer)
      • 7-band graphic equaliser (rewrite through USB)
      • Graphic EQ (5 presets with 3 custom user presets)
      • Loudness control
      • Built-in Low pass / high pass filters
      • Subwoofer Control
      • 2V / 4-channel audio pre-out
      • Programmable Steering Wheel Control

       TUNER
      • Frequency Bands : FM/AM
      • FM: (MHz) 0.05 MHz steps : 87.5 - 108.0
      • AM: (kHz) 9 kHz steps : 531 - 1,629

       USB
      • USB Ports : 1 (Front)
      • Supported File Format : MP3 / WMA

       CD
      • S/N Ratio (dB) 1 kHz : 94dB
      • Frequency Response (Hz) : 20 - 20,000
      • Dynamic Range (dB) 1 kHz : 93dB
      • Supported File Format : CDDA / MP3 / WMA

       iPod
      • Direct iPod Control : Yes via USB)
      • iPhone Compatible : YES

       AUDIO
      • Power Output : 50W x 4 channel maximum power output

       BLUETOOTH
      • Profile : AptX technology : HFP, A2DP, AVRCP, PBAP

       GENERAL
      • Dimensions (W x H x D) (mm) : Chasis 178 x 50 x 155 (1DIN)
      • Power Consumption : 15 A
      • Power Requirement : 14.4 DC (10.8 - 15.6 V allowable)
      • Speaker Impedance : 4Ω (4Ω to 8Ω allowable)
