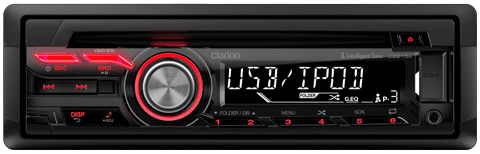

CZ215A
   1 DIN / CD / USB / MP3 / WMA RECEIVER

   Specifications

 MONITOR
• 13 segments x 10 digits
• Single line display with white illumination

 SUPPORTED MEDIA
• CD / iPod / USB / AUX
• Built-in Bluetooth for hands-free calling with echo cancellation & noise reduction

 AUDIO FEATURES
• Intelligent Tune (Sound Restorer, Virtual Bass, Dynamic Beat Enhancer)
• 7-band graphic equaliser (rewrite through USB)
• Graphic EQ (5 presets with 3 custom user presets)
• Loudness control
• Built-in Low pass filter
• Subwoofer Control
• 2V / 4-channel audio pre-outl
• Programmable Steering Wheel Control

 TUNER
• Frequency Bands : FM/AM
• FM: (MHz) 0.05 MHz steps : 87.5 - 108.0
• AM: (kHz) 9 kHz steps : 531 - 1629

 USB
• USB Ports : 1 (Front)
• Supported File Format : MP3 / WMA

 CD
• S/N Ratio (dB) 1 kHz : 94dB
• Frequency Response (Hz) : 20 - 20,000
• Dynamic Range (dB) 1 kHz : 93dB
• Harmonic Distortion (%) : 0.1
• Supported File Format : CDDA / MP3 / WMA

 iPod
• Direct iPod Control : Yes via USB)
• iPhone Compatible : YES

 AUDIO
• Power Output : 50W x 4 channel maximum power output

 GENERAL
• Dimensions (W x H x D) (mm) : Chasis 178 x 50 x 155 (1DIN)
• Power Consumption : 15 A
• Power Requirement : 14.4 DC (10.8 - 15.6 V allowable)
• Speaker Impedance : 4Ω (4Ω to 8Ω allowable)
