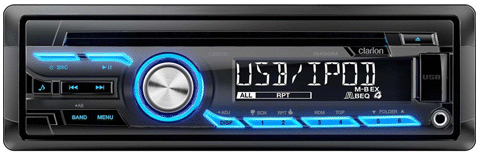

CZ205A
   CD/USB/MP3/WMA RECEIVER

   Specifications

 MONITOR
• 13 segments x 10 digits
• Single line display with white illumination

 SUPPORTED MEDIA
• CD / iPod / USB / AUX

 AUDIO FEATURES
• Beat EQ with Bass Boost, Impact, Excite, and Custom Made
• Magna Bass EX
• Built-in Low pass filter
• Subwoofer Control

 TUNER
• Frequency Bands : FM/AM
• FM: (MHz) 0.05 MHz steps : 87.5 - 108.0
• AM: (kHz) 9 kHz steps : 531 - 1629

 USB
• USB Ports : 1 (Front)
• Supported File Format : MP3 / WMA

 CD
• S/N Ratio (dB) 1 kHz : 94dB
• Frequency Response (Hz) : 20 - 20,000
• Dynamic Range (dB) 1 kHz : 93dB
• Harmonic Distortion (%) : 0.1
• Supported File Format : CDDA / MP3 / WMA

 iPod
• Direct iPod Control : Yes via USB)
• iPhone Compatible : YES

 AUDIO
• Power Output : 45W x 4 channel maximum power outputB)
• iPhone Compatible : Audio Pre-Out Connection: 2V / 4-channel maximum power output

 GENERAL
• Dimensions (W x H x D) (mm) : Chasis 178 x 50 x 163 (1DIN))
• Wight (kg) : 2.82
• Power Consumption : 15 A
• Power Requirement : 14.4 DC (10.8 - 15.6 V allowable)
• Speaker Impedance : 4Ω (4Ω to 8Ω allowable)
